29 mm slim series · Aluminium sliding window system

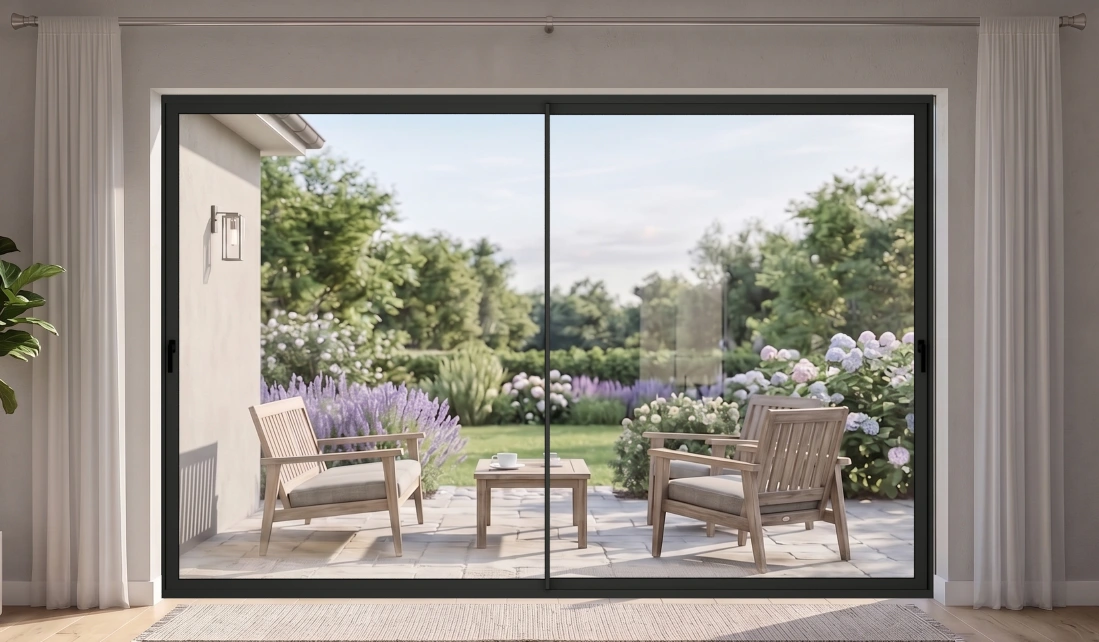

Two-shutter
window

2-track / 2 glass shutters

Two glass shutters for a clear garden view.

Download Brochure

29 mm slim series · Aluminium sliding window system

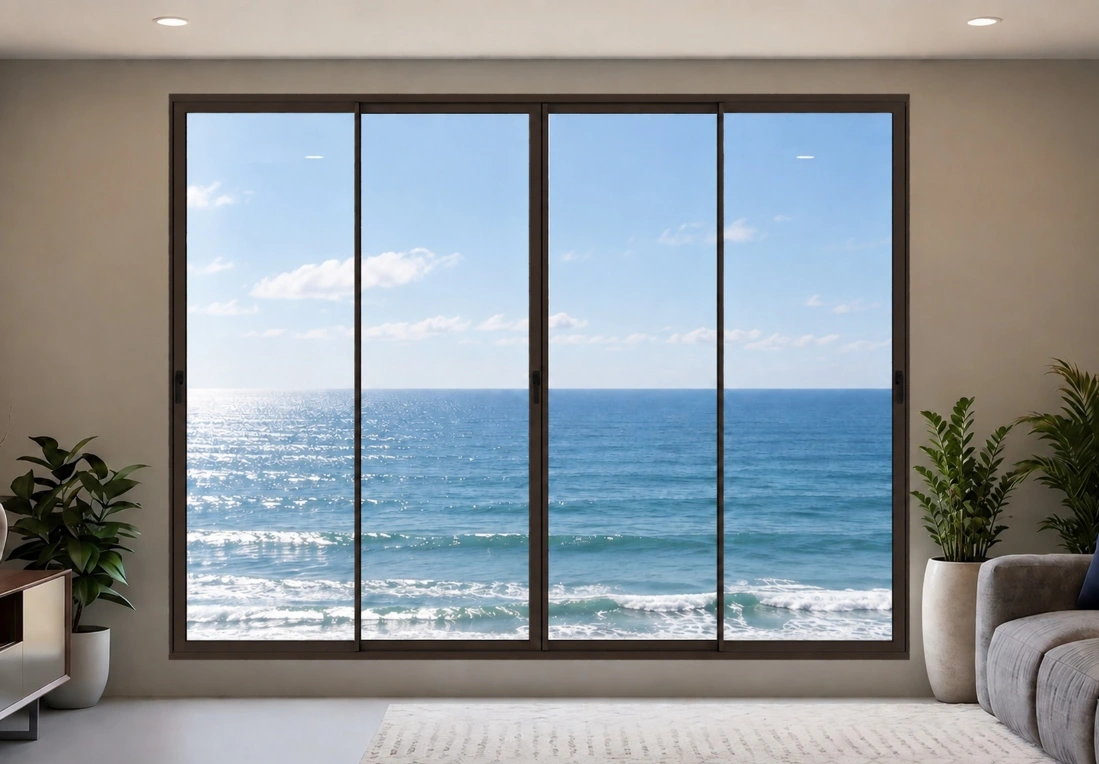

Four-shutter
window

2-track / 4-shutter configuration

A wide, sea-facing view through four slim shutters.

Download Brochure

29 mm slim series · Aluminium sliding window system

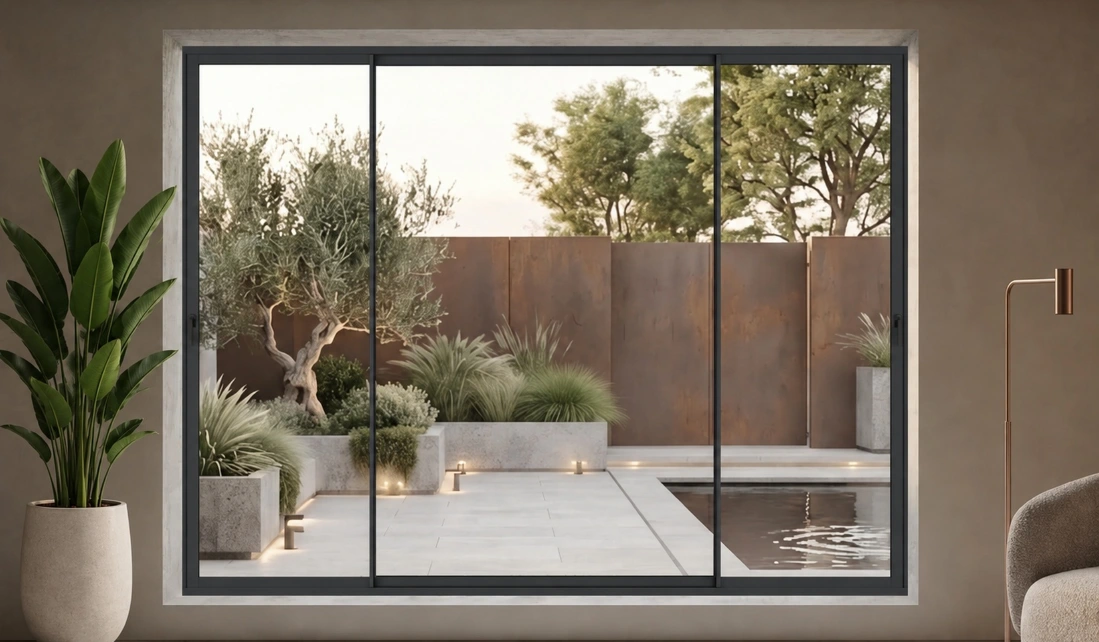

Three-shutter
window

2-track / 3-shutter / Opening: 1 x 2 x 1

A broad opening for a panoramic view.

Download Brochure

29 mm slim series · Aluminium sliding window system

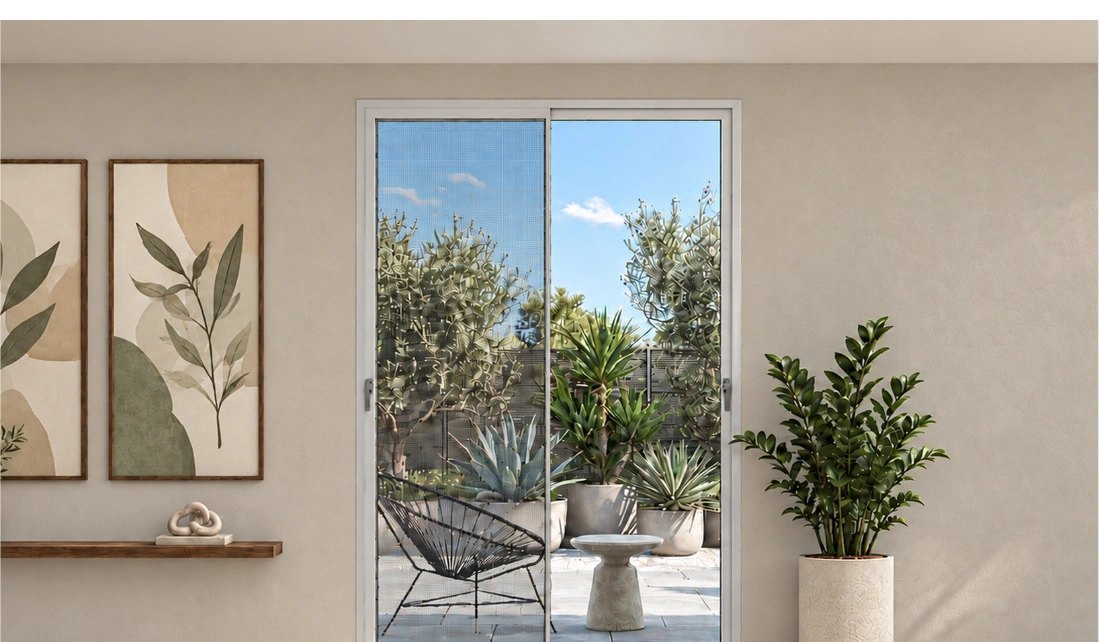

Window with
mesh shutter

3-track / 2 glass shutters / 1 mesh shutter

Two glass shutters and one mesh shutter on a 3-track system.

Download Brochure

29 mm slim series · Aluminium sliding window system

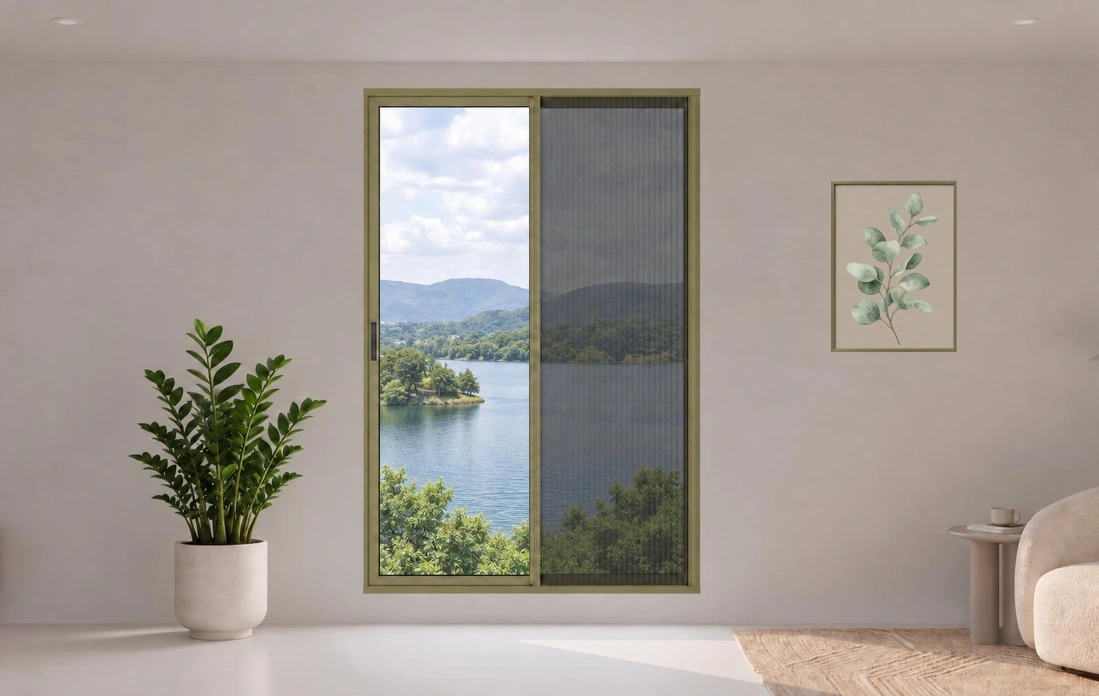

Window with
pleated mesh

2-track / 2-shutter / Attached pleated mesh

Attached pleated mesh shown in the closed position.

Download Brochure

29 mm slim series · Aluminium sliding window system

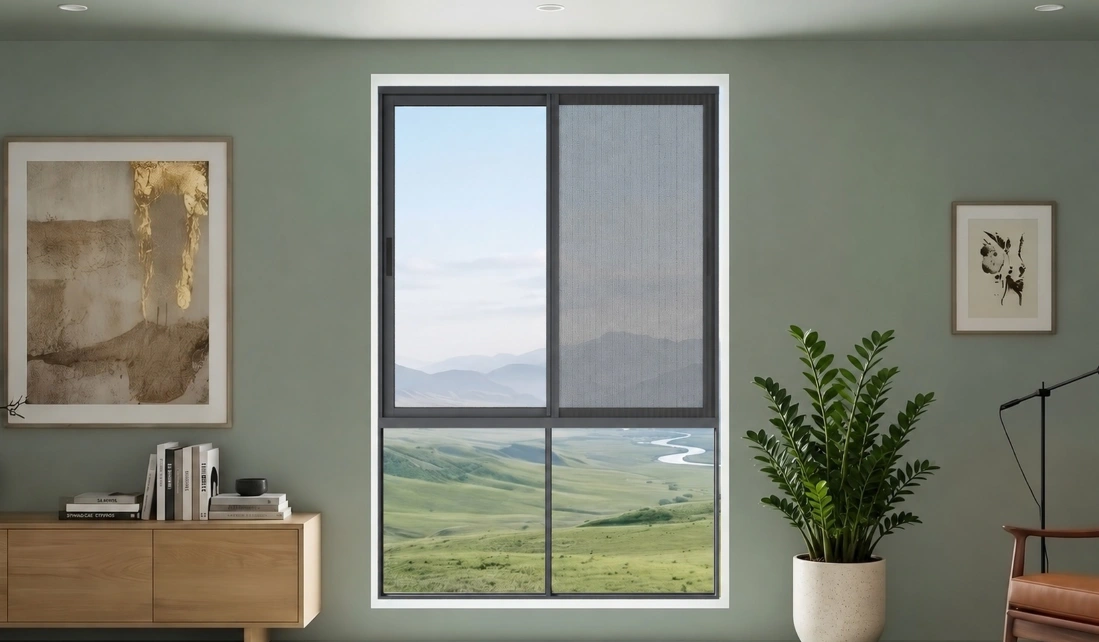

Bottom-fixed
window

2-track / 2-shutter / Attached pleated mesh

Bottom fixed with 16 mm tube thickness.

Download Brochure

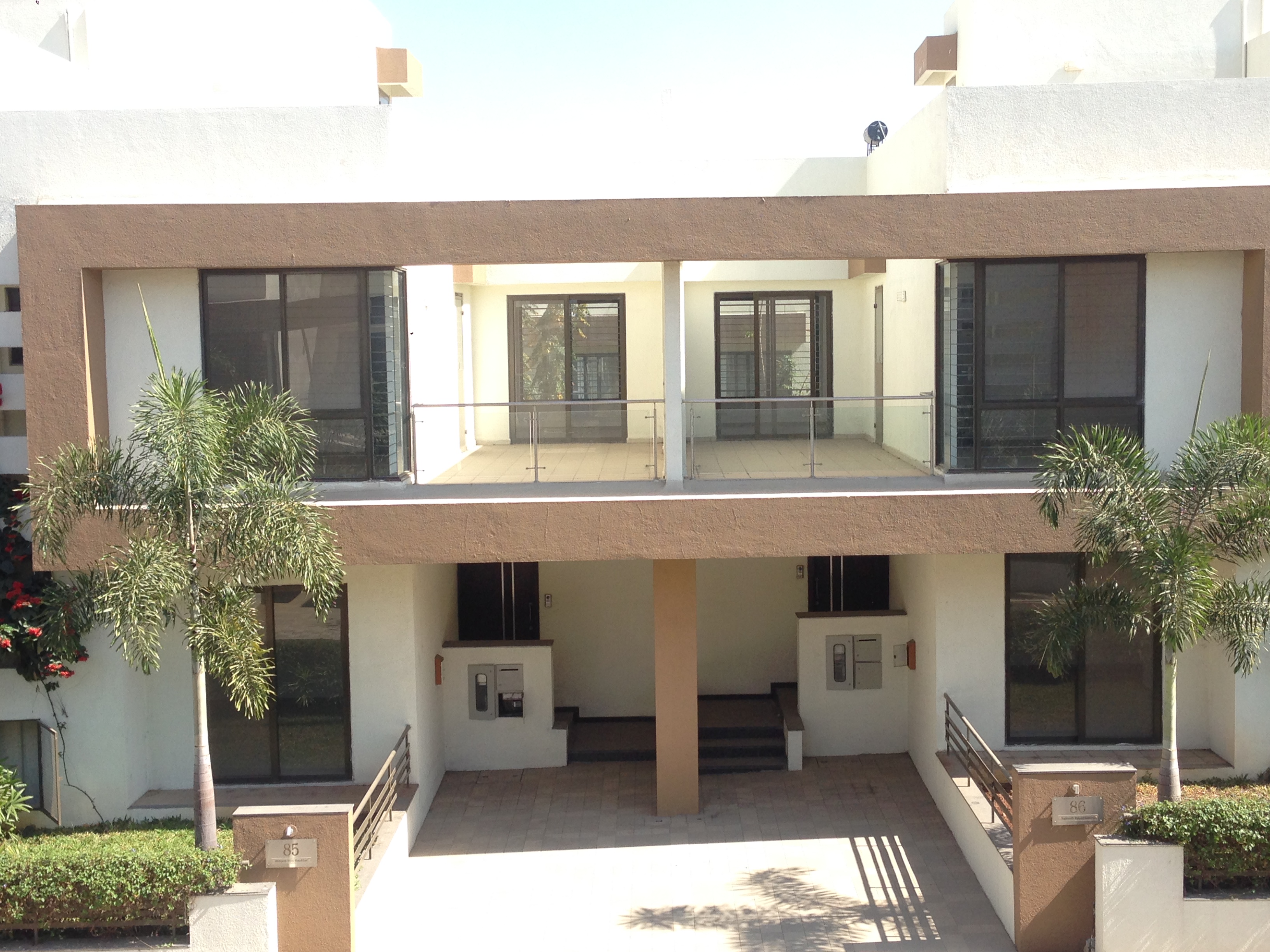

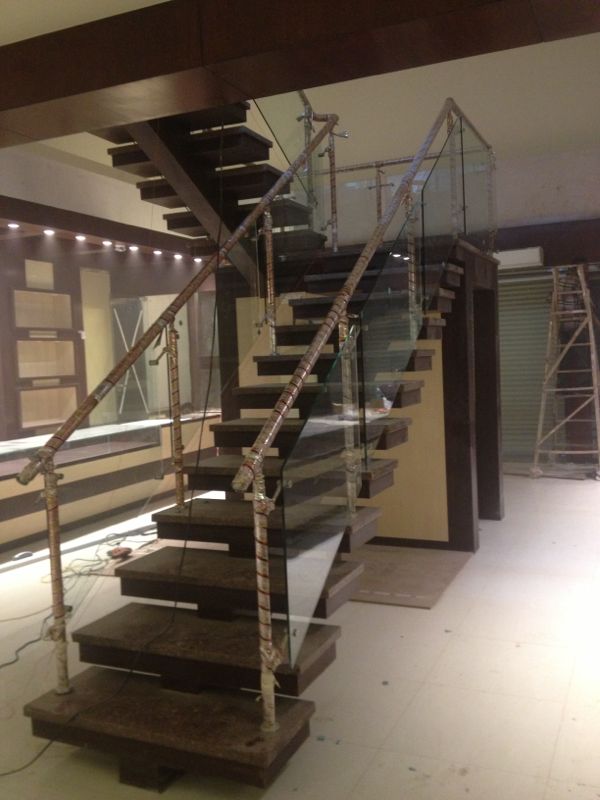

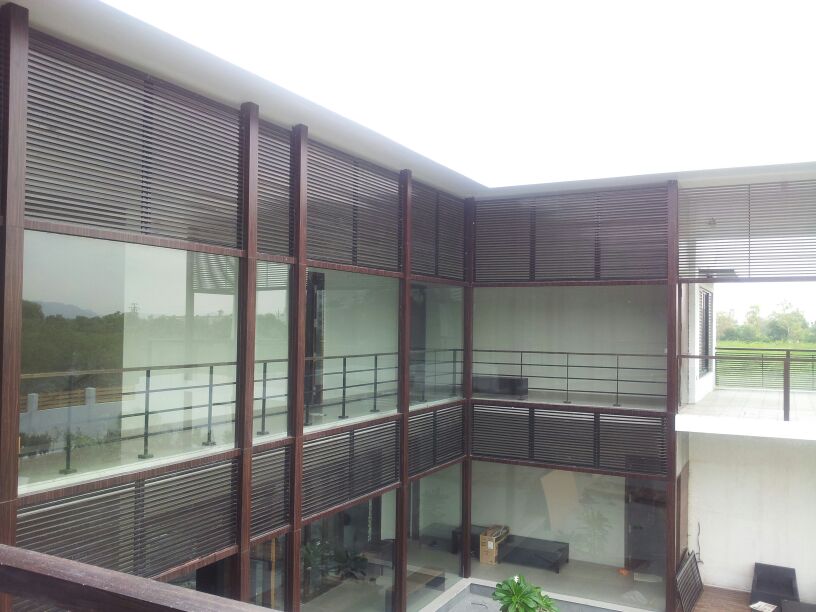

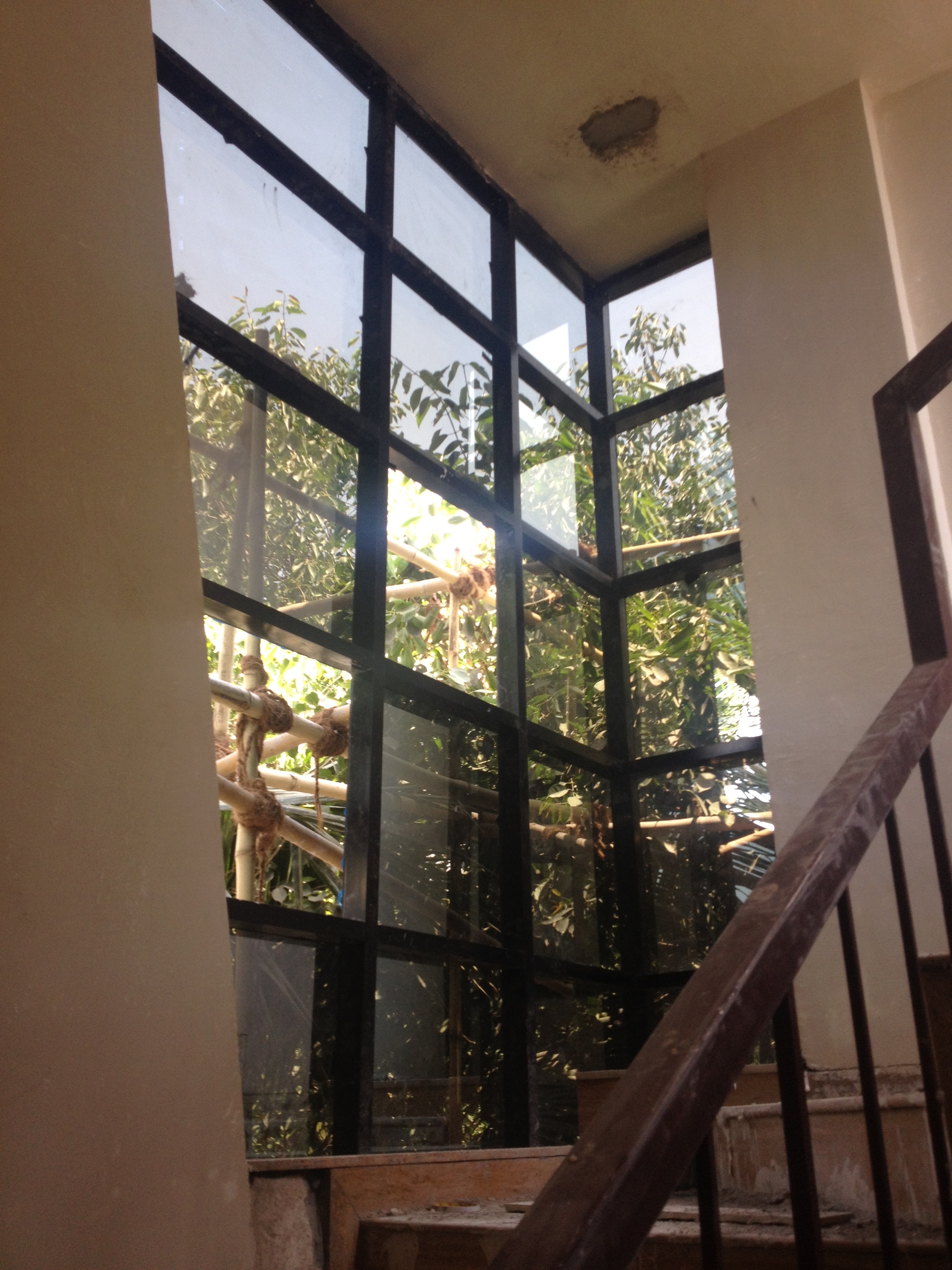

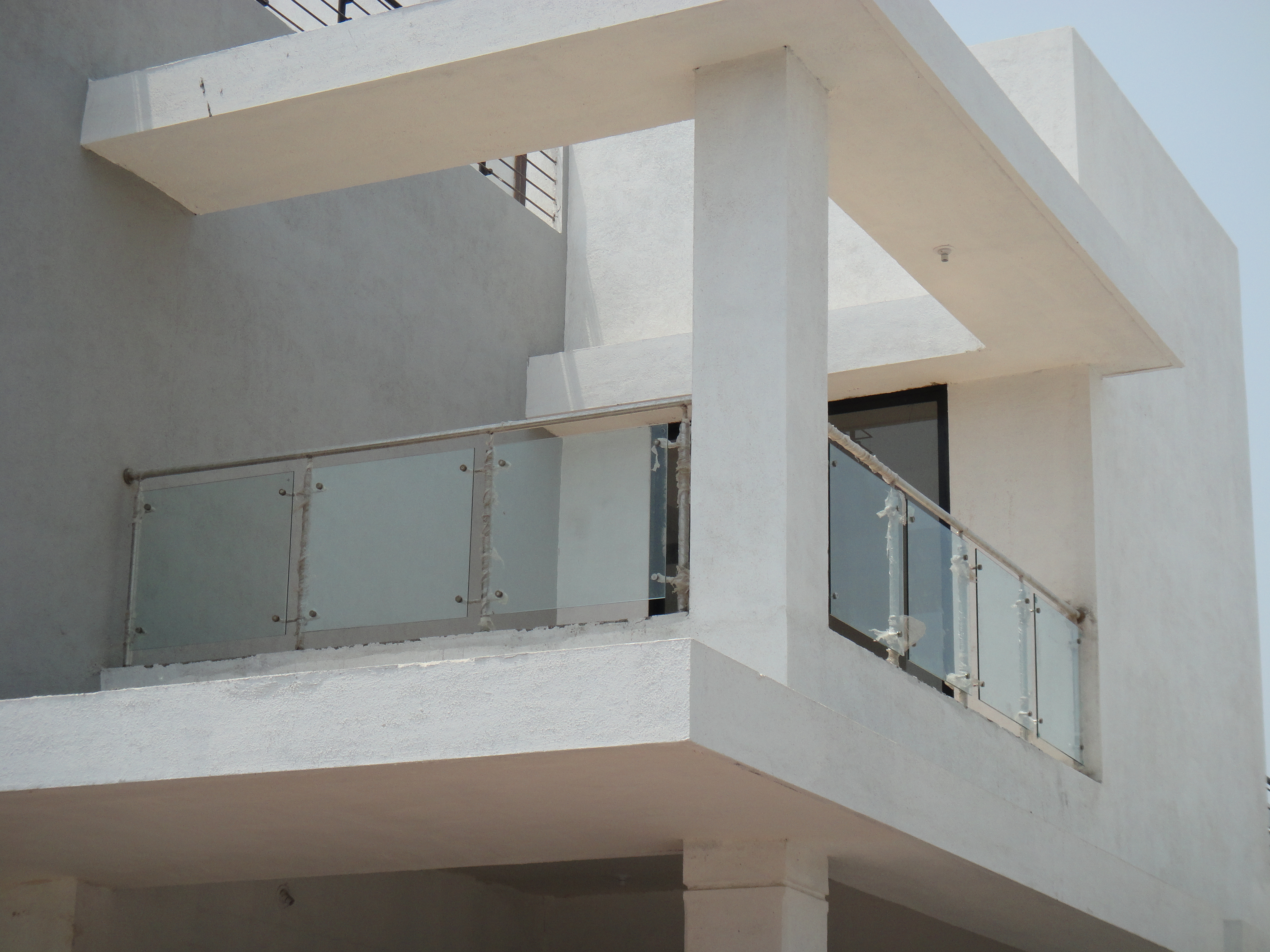

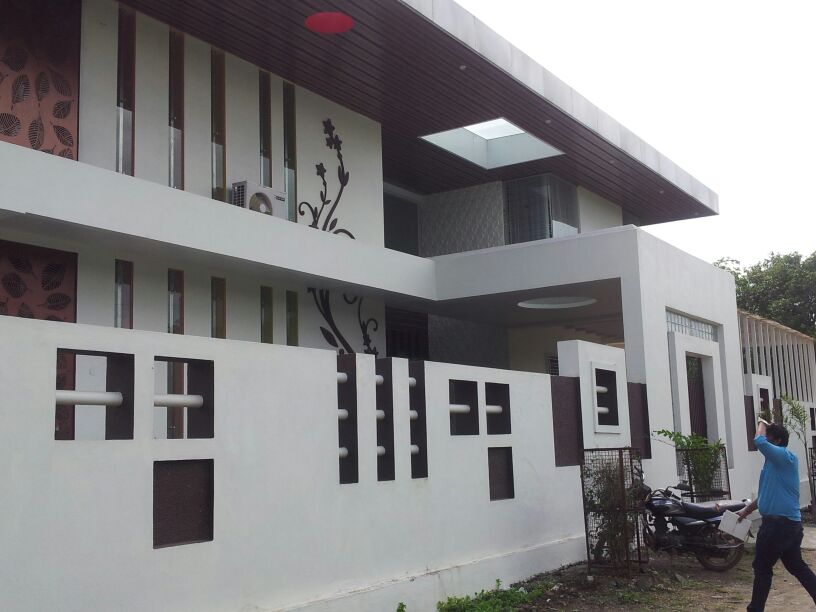

Our clients & subcontract projects

System overview

The 29 mm slim system

View Technical Details

A refined aluminium window range for contemporary spaces.

29 mm

Slim series system

6063-T6

Aluminium grade

5–20 mm

Glass compatibility

19 mm

Vision-free interlock

No cleats, no attachments, no add-on sections.

Sleek · Strong · Modern

Window configurations

Designed for every space

Choose from versatile configurations to suit your home, office or commercial project.

Three-shutter window overlooking a landscaped courtyard.

Key Features

Full aluminium body
with adjustable nylon rollers

Wool-pile brush
with silicone base

Joint-free aluminium
section assembly

Inbuilt pleated
mesh option

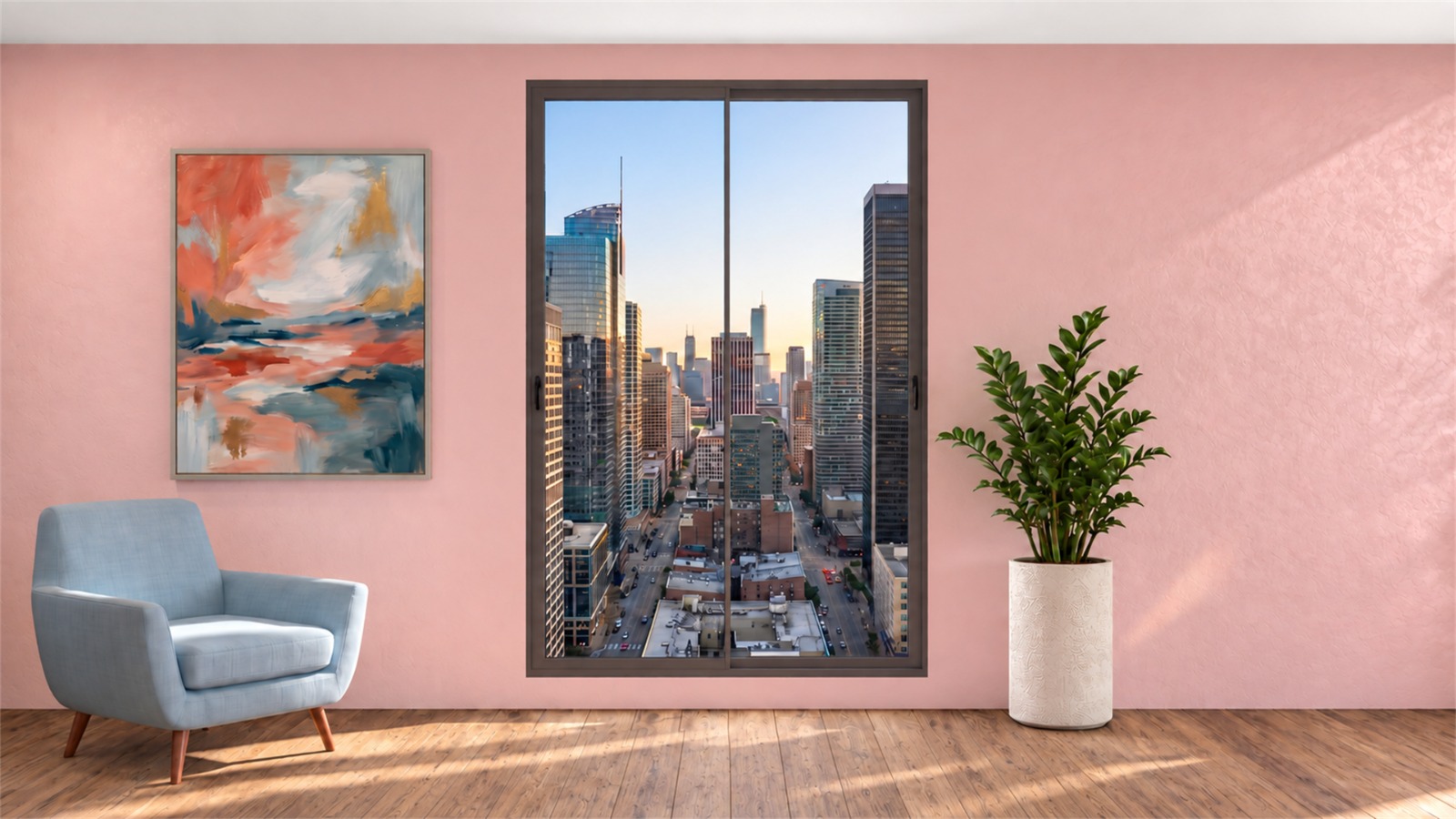

Aluminium window overlooking the city from a sunlit room.

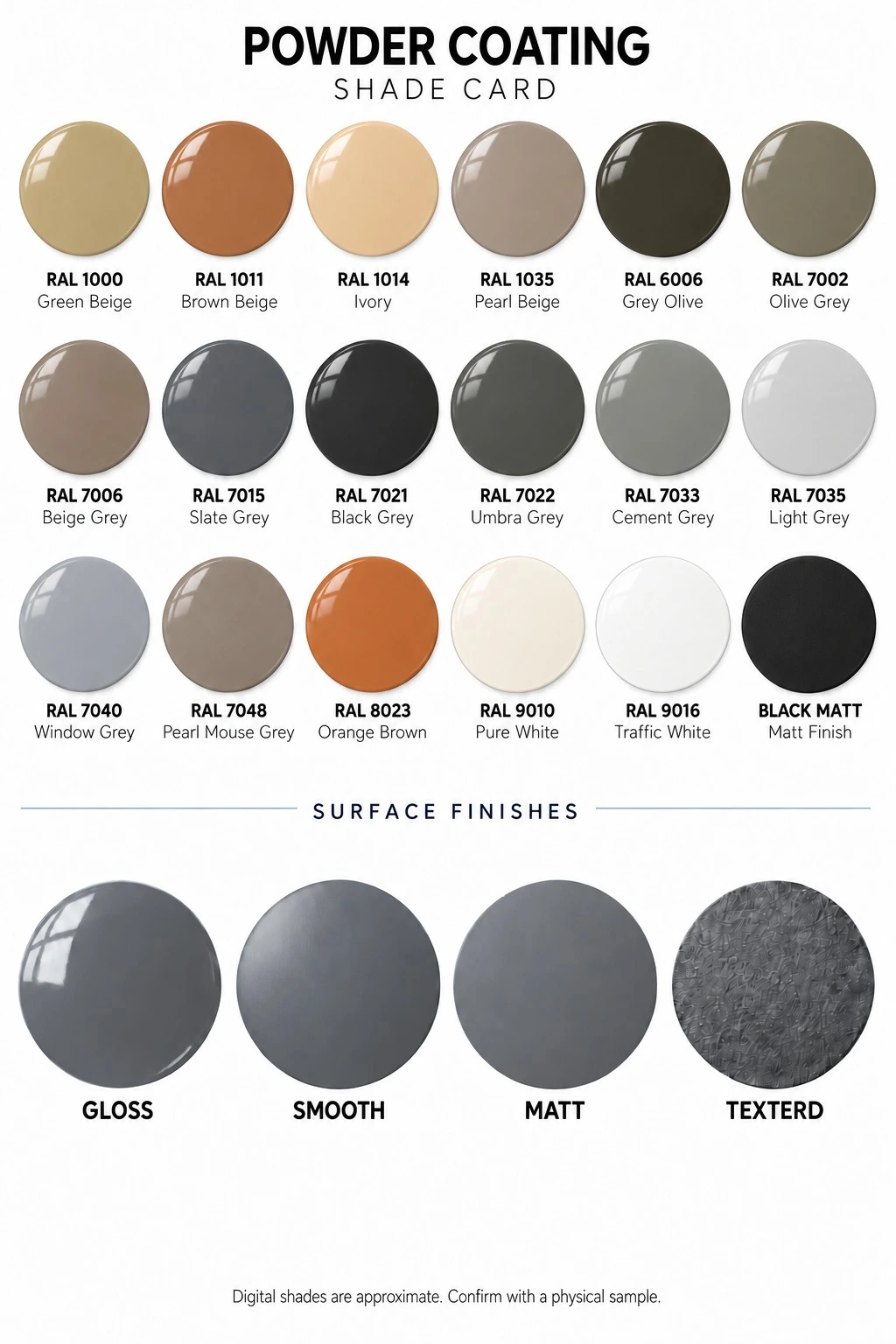

Colours & finishes

Powder coating

Shade card / Surface finishes

Digital shades are approximate. Confirm with a physical sample.

Request Sample

Technical specifications

Made for slim, strong openings

Construction

6063-T6 grade
Joint-free assembly

Glazing

5 mm to 20 mm
glass

Design load

Up to 2.4 kPa
window load

Height

Window height
up to 10 ft

Mesh

Inbuilt pleated
mesh option

Warranty claims

15 years (EPDM gaskets)
10 years (powder coating)

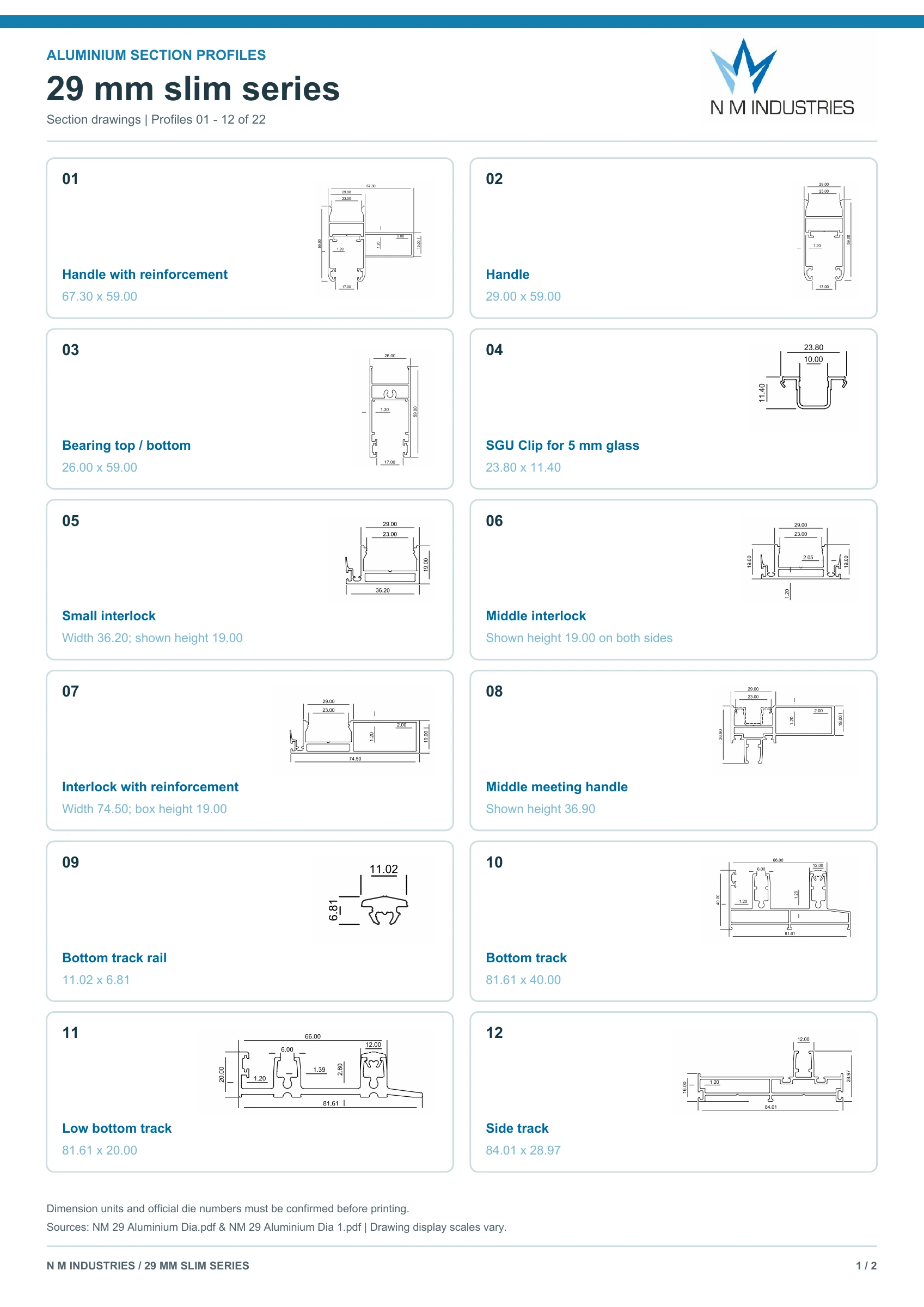

22 aluminium section profiles, with configuration drawings in the product details.

Let’s Build Better Spaces

Get in touch for product details, samples or project consultation.

Get a Quote Download Brochure

No.	Profile	Dimensions as shown in catalogue
01	Handle with reinforcement	67.30 x 59.00
02	Handle	29.00 x 59.00
03	Bearing top / bottom	26.00 x 59.00
04	SGU Clip for 5 mm glass	23.80 x 11.40
05	Small interlock	Width 36.20; shown height 19.00
06	Middle interlock	Shown height 19.00 on both sides
07	Interlock with reinforcement	Width 74.50; box height 19.00
08	Middle meeting handle	Shown height 36.90
09	Bottom track rail	11.02 x 6.81
10	Bottom track	81.61 x 40.00
11	Low bottom track	81.61 x 20.00
12	Side track	84.01 x 28.97

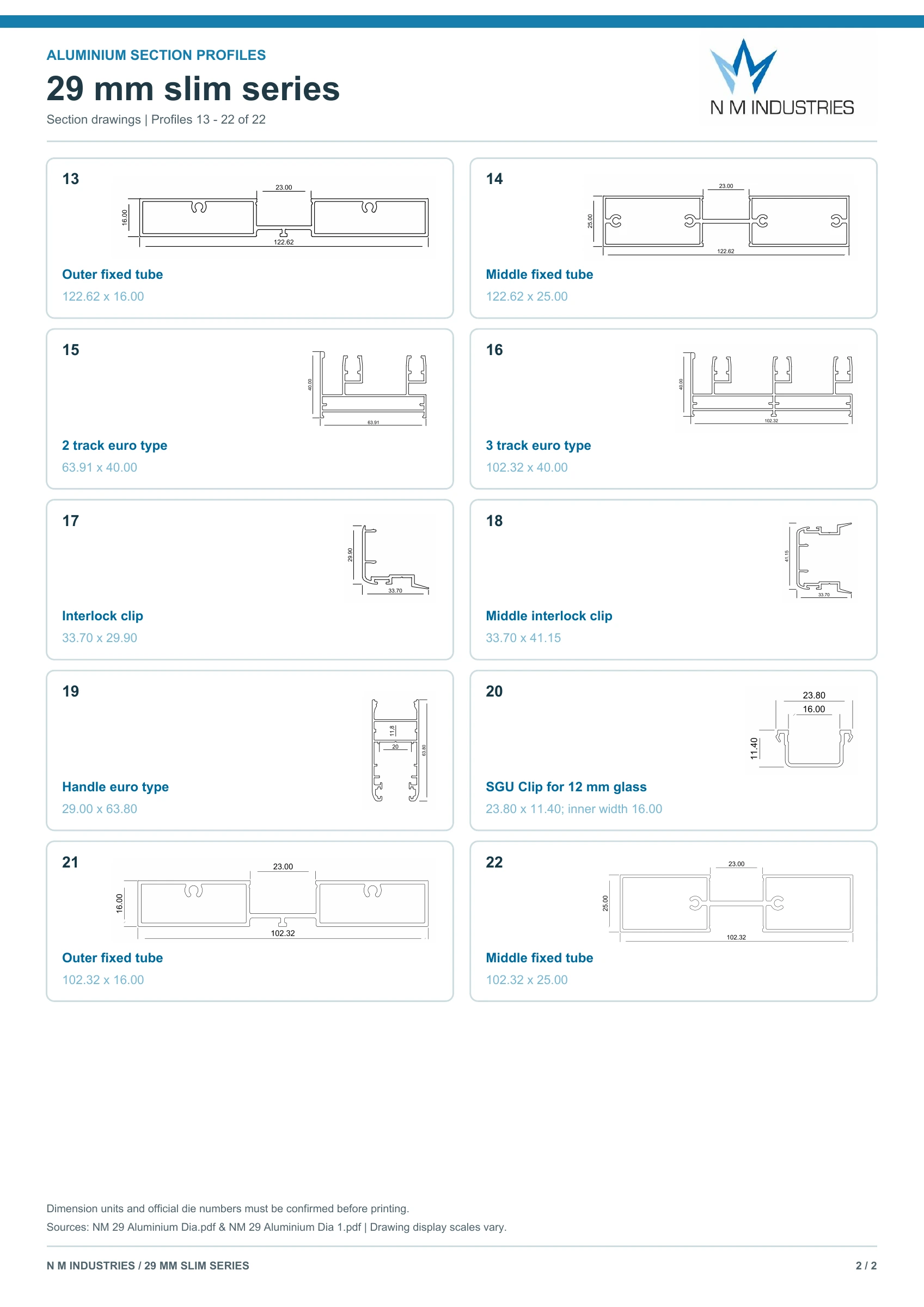

13	Outer fixed tube	122.62 x 16.00
14	Middle fixed tube	122.62 x 25.00
15	2 track euro type	63.91 x 40.00
16	3 track euro type	102.32 x 40.00
17	Interlock clip	33.70 x 29.90
18	Middle interlock clip	33.70 x 41.15
19	Handle euro type	29.00 x 63.80
20	SGU Clip for 12 mm glass	23.80 x 11.40; inner width 16.00
21	Outer fixed tube	102.32 x 16.00
22	Middle fixed tube	102.32 x 25.00
